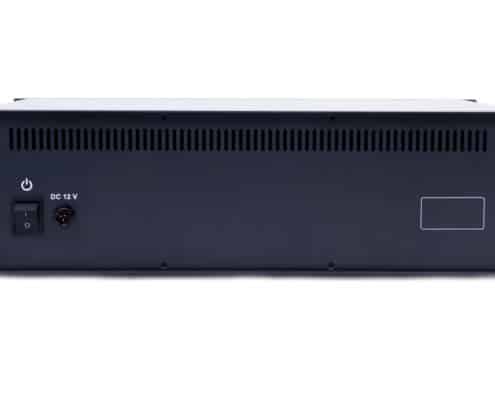

Multichannel measuring system ZET 037

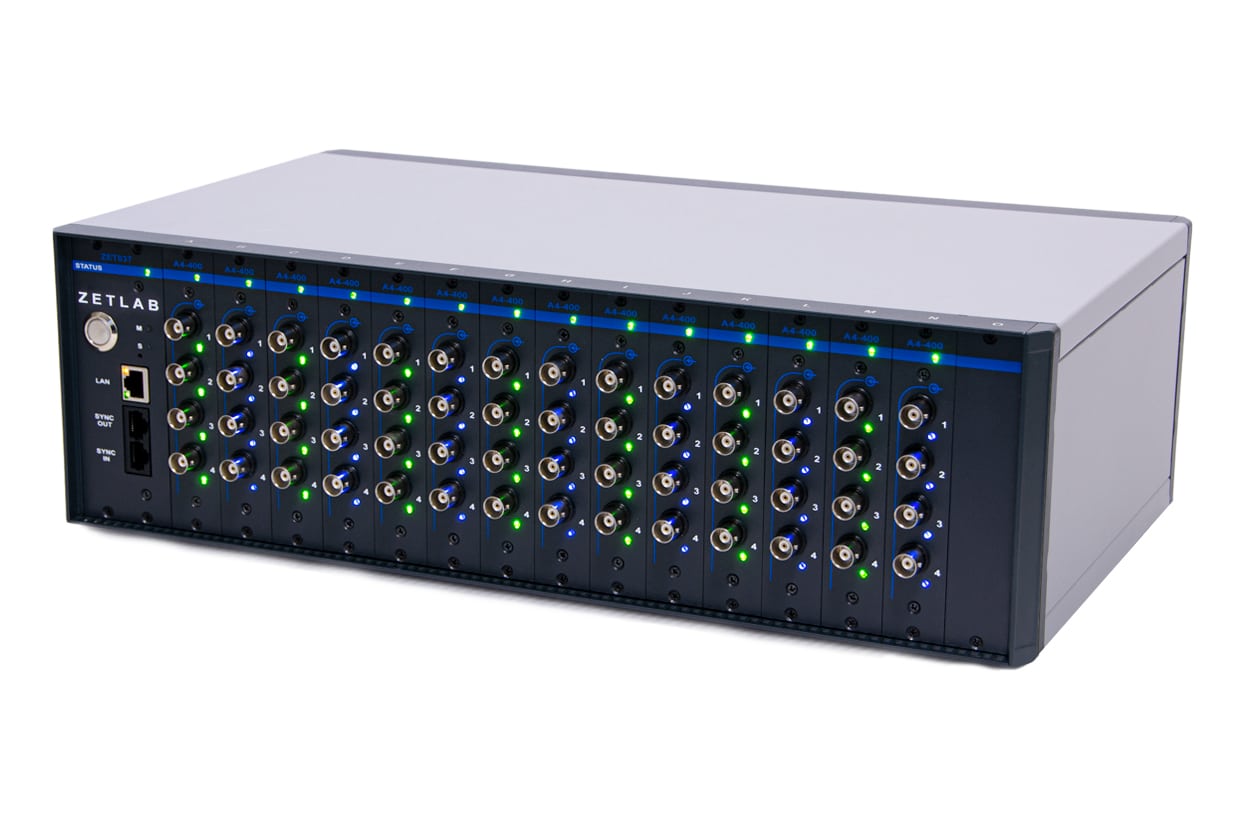

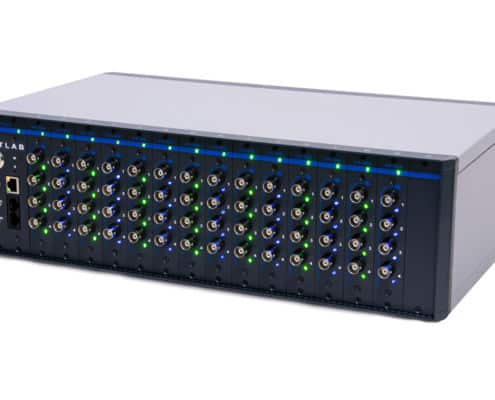

The ZET 037 multi-channel measuring system is a versatile, modular instrument designed to solve your unique application. The ZET 037 is a modular device built on a single housing and measuring modules. The maximum number of input channels per module is 4. Therefore, a single ZET 037 multi-channel system can be expanded to 56 measuring channels, and the system itself can use up to 1000 channels by adding recording units.
The measuring modules included in the ZET 037 multi-channel measuring system allow you to create a multifunctional system covering several measurement areas, such as:
- Electrical measurements (DC and AC voltage)
- Vibroacoustic measurements (in combination with vibration transducers: vibration, acoustic noise, sound pressure in air and water);
- Frequency measurements;
- Mechanical measurements (in combination with strain gauges: force, torque, deformation);
- thermal measurements (complete with thermometric sensors and pressure sensors: temperature, pressure).
Characteristics
multichannel measuring systems ZET 037
| General characteristics of the system | |
|---|---|
| Overall dimensions, no more than | 450×256×133 mm (19″ rack mountable) |
| Supply voltage | +10 .. 26 V |
| Power consumption (at voltage 12V) | 60 Vt |
| Synchronization of registration blocks according to the protocol MCTS* | synchronization error – less 10 hc |
| The number of input channels for measuring the signal about the current sweep frequency in COLA** format (a signal with constant amplitude), generated by an external control system | at least 1 channel |
| Data transfer interface speed to the operator’s workstation | at least 1 Gbit/s |
| ADC resolution (Сигма-дельта) | at least 24 bits |
| Input channels are out of phase at frequencies up to 2 kHz | no more 0,5 % |
| Protection of measuring channels from overload | not less than 40 V |
| Maximum number of crates | 14 |
| Interface | Ethernet (1 Gbps) |
| Operating temperature range | +5 °C … +45 °C |
| ZET 037A – analog measuring module | |
| Range of measured DC voltage | ± 10 V |
| Maximum amplitude of measured alternating voltage | 10 V |
| Basic reduced measurement error: DC voltage AC voltage |
не более ±0,06 % не более ±0,10 % |
| Supported sensor types | Voltage ICP(IEPE) Tenso 1/4 bridge |
| Operating frequency range | from the DC component, 0 Hz up to 160,000 Hz |
| Uneven frequency response in frequency sub-ranges 0,1 .. 90 kHz 90 .. 120 kHz 120 .. 160 kHz |
0,05 dB 0,1 dB 0,3 dB |
| Number of ADC bits | 24 |
| Maximum sampling frequency per channel | not less than 400 kHz |
| Frequency range of analyzed signals: in octave analysis mode in 1/3-octave analysis mode |
от 1 до 64000 Hz от 1 до 125000 Hz |
| Dynamic range in spectral analysis mode | 150 dB |
| The level of intrinsic noise at a sampling frequency of 400 kHz and KU1 | 35 UV |
| The level of intrinsic noise at a sampling frequency of 400 kHz and KU30 | 4,5 UV |
| Programmable gain factors | 1; 30 |
| Input impedance | 1 МОm |
| Self-testing capability | Eat |
| There is a number of measuring channels | 4 |
*The MCTS (Multi-Channel Time Sync) protocol is used to ensure synchronicity of measurements between units of a multi-channel system.
**Constant Output Level Amplitude – a constant output level amplitude, which is a sine wave of constant voltage, the frequency of which corresponds to the frequency of the control signal during sine wave testing.
Operating principle
multichannel measuring systems ZET 037
The ZET 037 multichannel measuring system consists of a main enclosure and user-selectable modules, depending on the measurement type. The system can monitor channel integrity for open or short circuit faults when the ICP is enabled. It can also support ICP and TEDS sensors.
The modules are installed in the enclosure and enable connection and measurement of signal parameters from various types of primary transducers.
The ZET 037 multichannel measuring system enclosure is rack-mounted. Multiple systems can be combined and synchronized, allowing for an increased number of measurement channels if needed.
Configuring the operating mode, recording, and processing measurement data is handled by specialized ZETLAB software installed on an external computer. The software features a user-friendly interface for displaying measurement results on external devices in any format (graphical or numerical) convenient for the user.
Basic configuration
multichannel measuring systems ZET 037
The basic package includes:
- ZET 037 platform;
- ZET 037A data acquisition controller (1 to 14 units) (quantity and configuration are determined individually when ordering);
- Ethernet cable;
- ZETLAB BASE software;
- 220 V → 12 V power supply;
- Carrying case;
- Operating documentation set.
